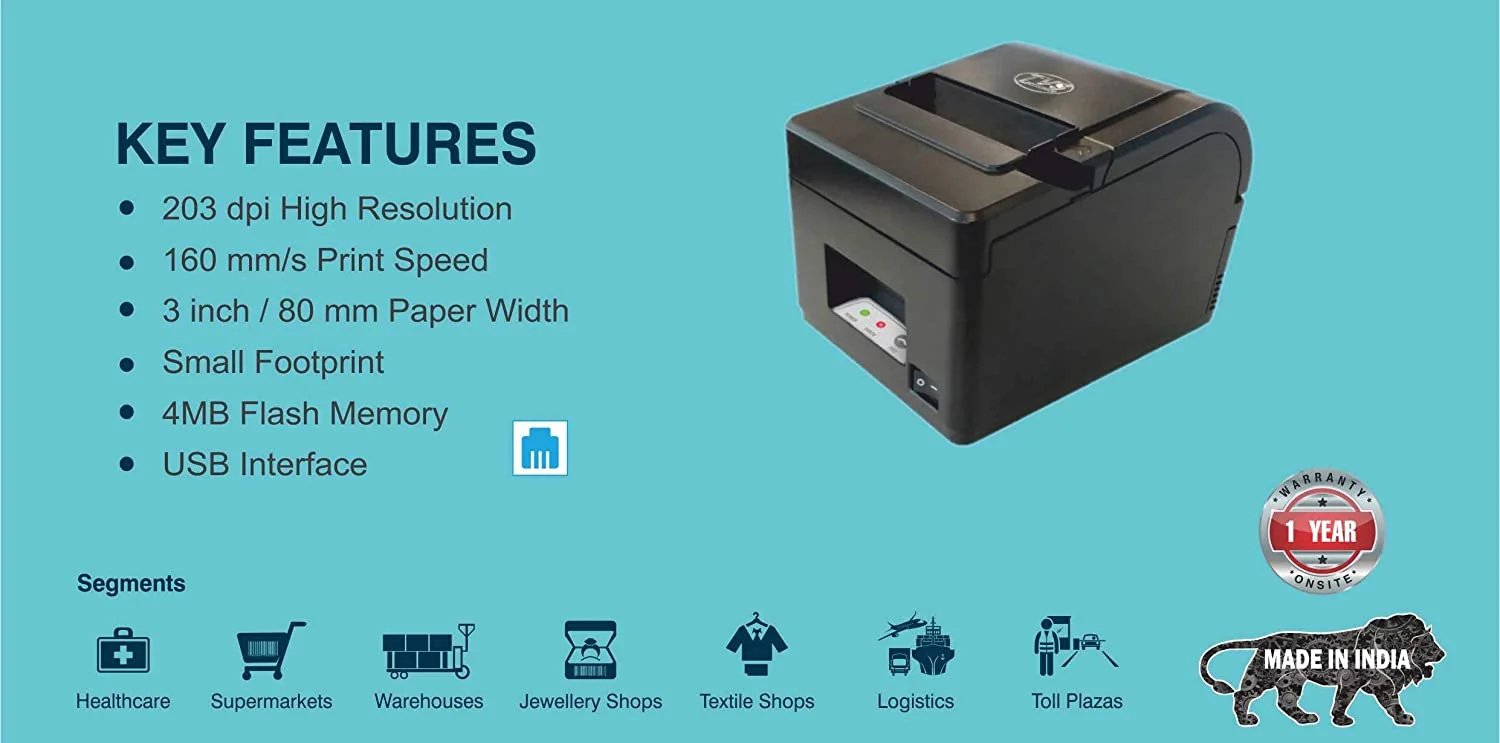

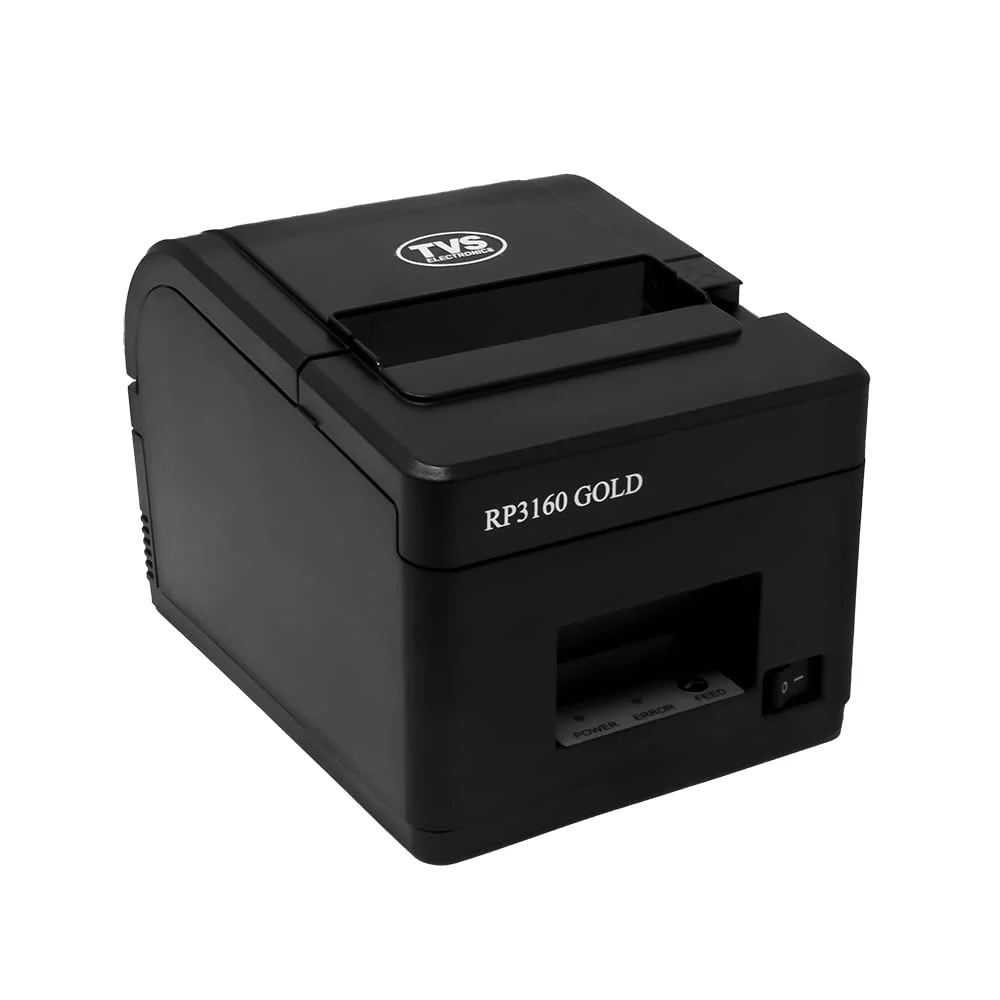

Thermal Receipt Printer RP 3160 Gold 3″ USB type

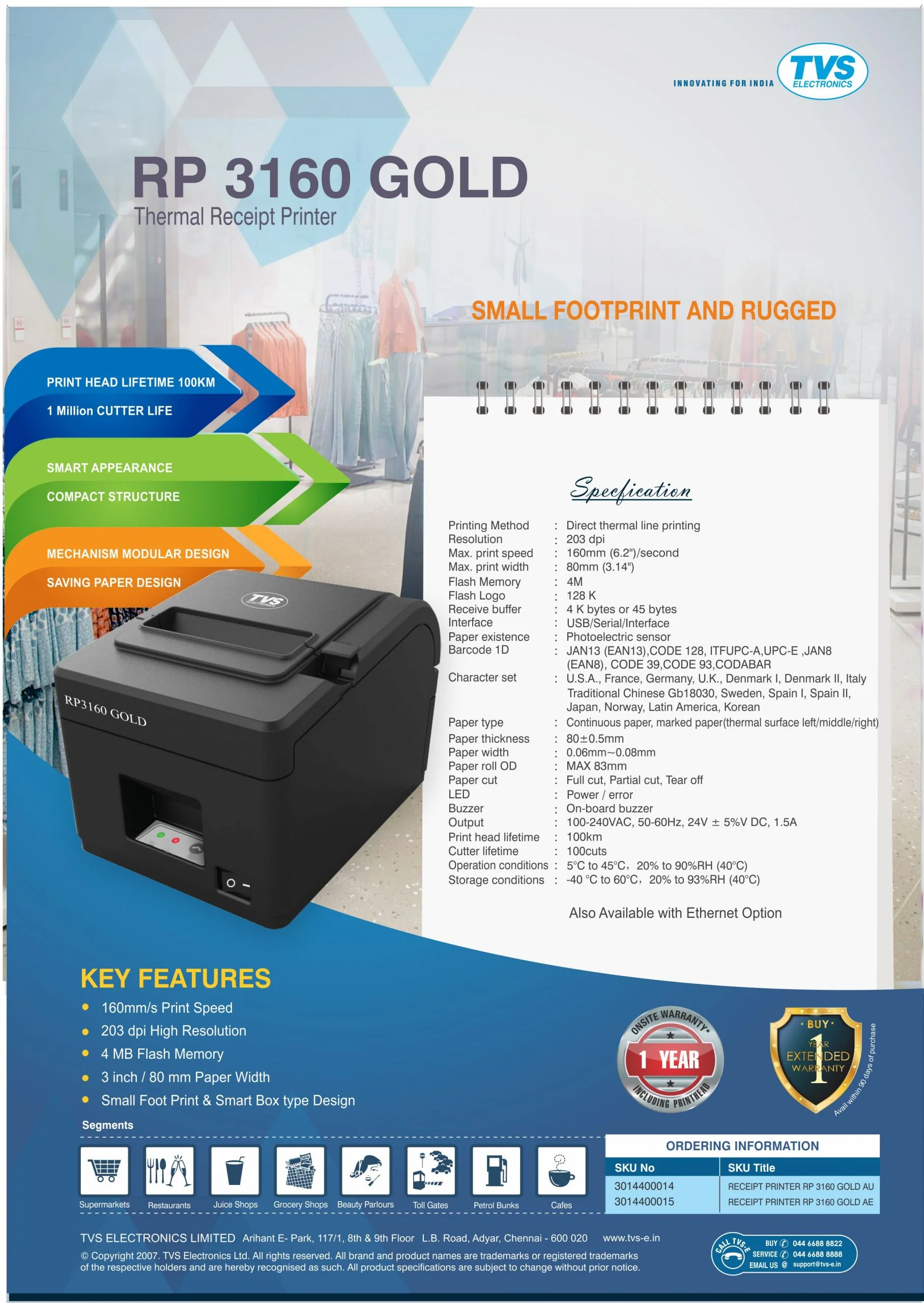

SPECIFICATIONS

Print Model
RP 3160 GOLD
Printing Method
Direct Thermal-line printing
Resolution
203 DPI
Max. Print Speed
160 mm/sec
Max. Print Width
80 mm
Flash Memory
4 M
Flash Logo
120 K
Receive Buffer
4 K bytes or 45 bytes
Interface
USB / Serial
Paper existence
Photoelectric Sensor
BARCODE ID
JAN13 EAN13, CODE 128, ITFUPCA, UPCE, JAN8 EAN8, CODE 39, CODABAR
Character Set
U.S.A, France, Germany, U.K, Denmark I, Denmark II, Italy
traditional Chinese Gbl8030, Sweden, Spain I, Spain II,
Japan, Norway, Latin America, Korean
Paper type
Continuous paper, marked paper, thermal surface
left / middle / right
Paper Roll width
80 ± 0.5 mm
Paper Thickness
0.06 mm – 0.08 mm
Paper Roll OD
MAX 83 mm
Paper Cut
Full cut, Partial cut, Tear off
LED
Power / Error
Buzzer
Onboard Buzzer
Output
100~ 240VAC, 5060Hz, 24V ± 5%V DC, 1.5A
Print head lifetime
100 km
Cutter Lifetime
1000000 cuts
Operation conditions
5°C to 45°C, 20% to 90%RH 40°C
Storage conditions
40°C to 60°C, 20% to 93%RH 40°C
