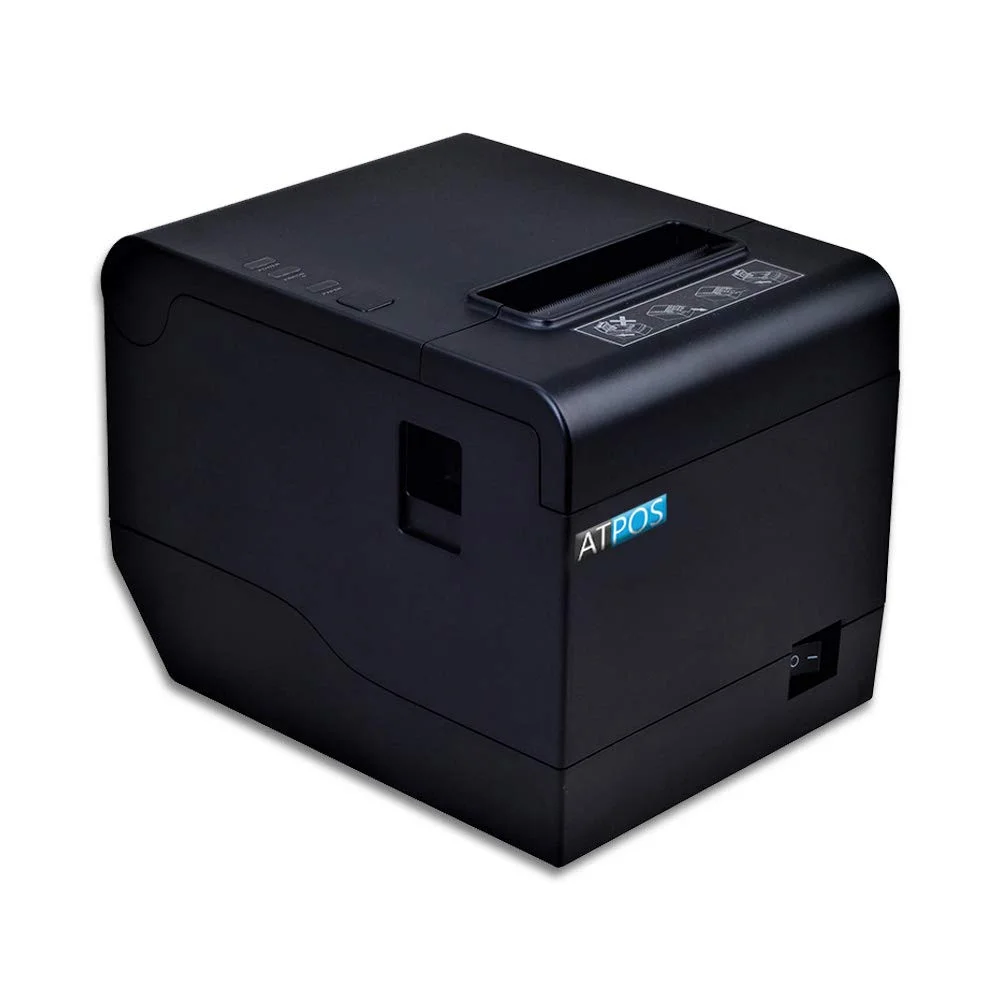

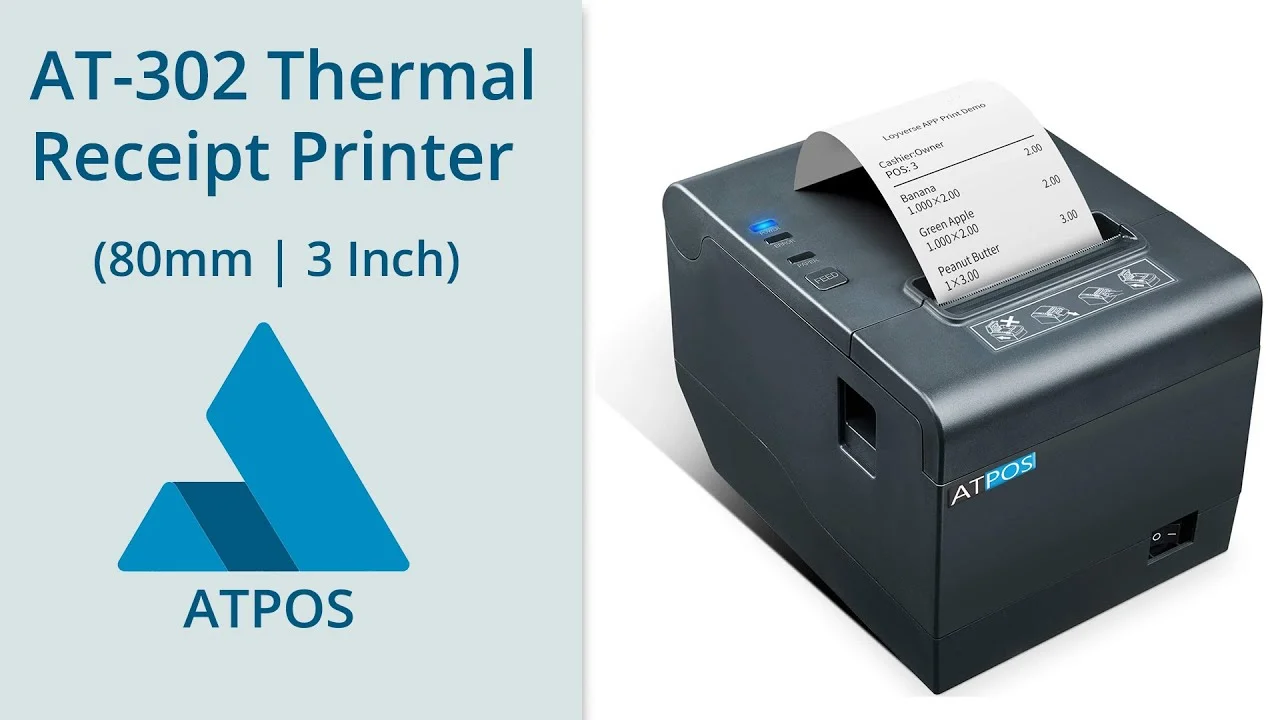

ATPOS AT-302 80mm 3″ Thermal Printer with Auto Cutter USB+LAN 230mm/s

7,850.00

  • Direct Thermal Printing uses thermal paper instead of ink.
  • 80mm thermal printer with Auto-cutter function, Interface: USB + LAN PORT.
  • With high efficiency and clear printing, print speed can reach to 230mm/s.
  • Up to 150 Km Head Life, Support Window software based on ESC/POS command.

AtPOS AT-302 Printer is a high-quality thermal printer for network and desktop printing. 230mm/s of high-speed printing. Rich interface selection including Ethernet. Print status real-time monitoring and large input buffer, to avoid losing any bills, embedded IE server, configure printers more convenient. So many leading technologies beyond the performance of similar products, allowing you to enjoy high-quality, free from worry print experience.

SKU: PM93 Category:



MODEL AT-302
PRINTING METHOD Thermal Receipt Printer – No Label/Sticker
INTERFACE USB+LAN
STANDARD ACCESSORIES Roll Paper x 1, CD-ROM (Drivers, Utility Software, Manuals), USB Cable, Power Cable
WEIGHT 1.94kg
BRAND Atpos
FONT Font A 12×24, Font B 9×17, User-defined, Japanese/Korea/Chinese
CHARACTER SIZE (W X H) 0.88×2.13mm / 1.25x3mm, Hanji Font: 3x3mm, Thai Font: 0.88x3mm / 1.25x3mm
CHARACTER SET 95 Alphanumeric, 18 set International, 128×43 pages (including user-defined page) Hanz Barcode: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODEBAR (NW-7), CODE93, CODE128, GS1-128, Gs1 DataBar Two-dimensional code: PDF417, QRCode, MaxiCode, 2D Gs1 DataBar Composite Symbology
CHARACTERS PER INCH 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font : 22.6cpi / 16.9cpi
INTALLATION Horizontal/Wall Mountable
BUFFER  NV Flash: 256K bytes
PRINT SPEED Max 230mm/s
DOT DENSITY 384dots/Line(8dots/mm,203dpi)
PAPER (ROLL PAPER (WIDTH & ROLL DIAMETER) 78mm ± 0.5 (W) × dia. 83.0
POWER DC +24V ± 5%
OPERATING Approx. 2.5A (Mean/Print ratio 18% with print pattern)
STANDBY Approx. 0.1A (Mean)
CASH DRAWER POWER SUPPLY DC 12V 1A
CASH DRAWER INTEGRATION Yes Supported
DIMENSIONS (D X W X H) 196x145x135mm
PRINTER HEAD LIFE 150KM (Print Density <12.5)
CUTTER Auto cutter – 1.5 Million
WARRANTY 1 year
